Vacuum conveying technology
HELIO®Vac

Suitable conveyor technology for OKTOMAT® discharging stations

Examples

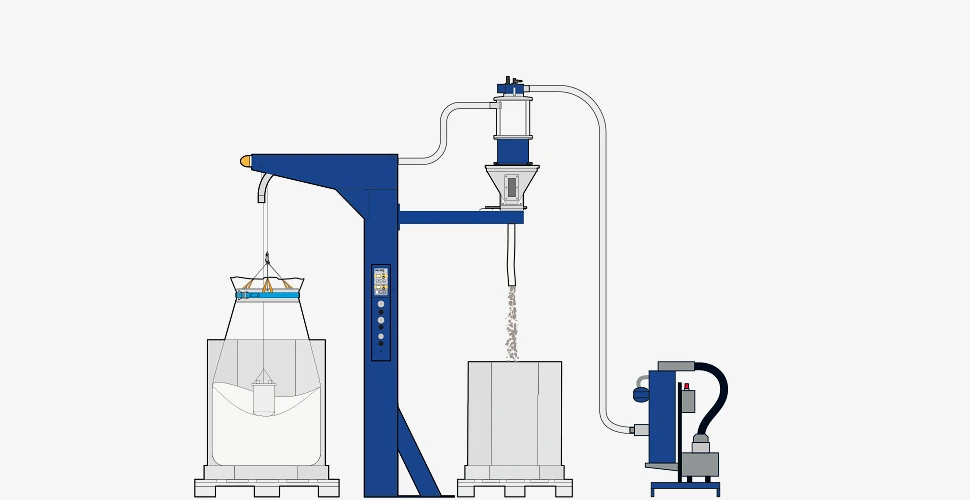

Refilling station

OKTOMAT® portal-/ pedestal-version with cantilever arm + HCA hopper loader

Capacity up to approx. 250 kg/h*

*depending on the conveyed material and conveying distance

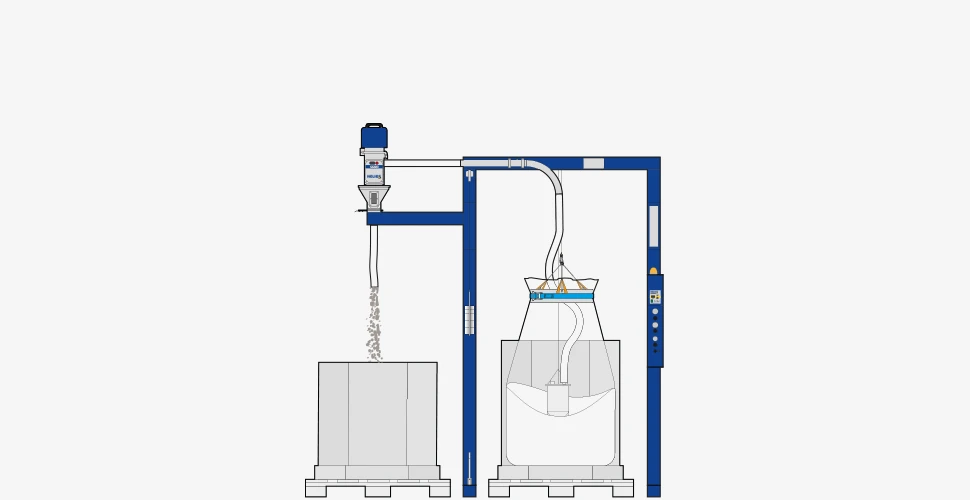

Refilling station

OKTOMAT® SOS portal-/ pedestal-version with cantilever arm + HFE-15K hopper loader and HV vacuum station

Capacity up to approx. 1000 kg/h*

*depending on the conveyed material and conveying distance

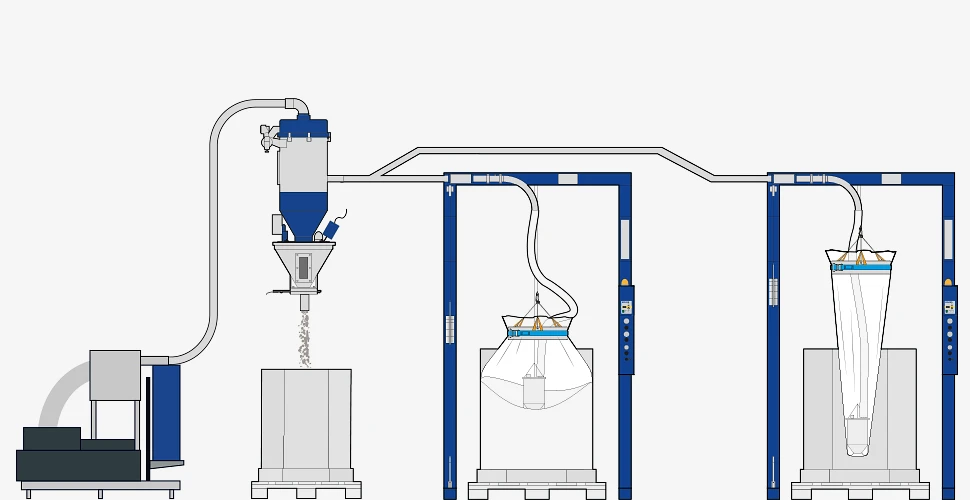

Double station

OKTOMAT® portal-version with switch over function + SFG hopper loader and HVK vacuum station

Capacity up to approx. 5000 kg/h*

*depending on the conveyed material and conveying distance

Vacuum hopper loaders

HFE

Stainless steel/glass vacuum hopper loader with separate conveyor control

Granules

Capacity up to 1000 kg/h

  • HFE-15K | 15 liters
  • HFE-30K | 30 liters

Conveyor pipe ∅ 50|65 mm

with intermediate container 15/25 liters as an option

SFG

Stainless steel vacuum hopper loader with integrated control

Powder Fine resin Regrind Granules

Capacity up to 5000 kg/h

  • SFG-2 | 20 liters
  • SFG-3 | 20 liters*
  • SFG-6 | 60 liters

Conveyor pipe ∅ 38|50|60|65|80 mm

optionally with intermediate container 25 liters

*(with enlarged filter)

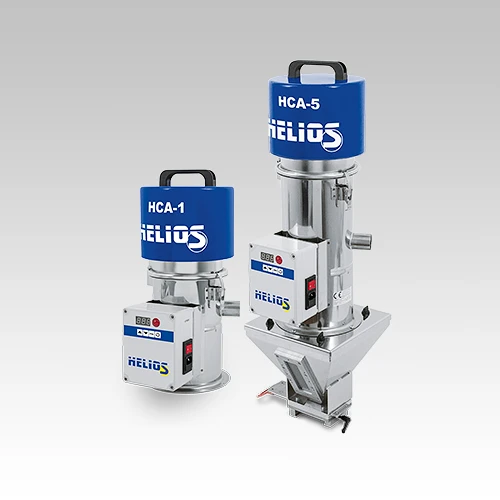

HCA

vacuum hopper loader made of stainless steel with compressed air driven vacuum generator

Powder Fine resin Granules

Capacity up to 250 kg/h

  • HCA-2 | 2 liters
  • HCA-5 | 2 liters*

Conveyor pipe ∅ 40 mm

with intermediate container 5/15 liters as an option

*(with enlarged filter)

Vacuum stations

HV vacuum station

with 2-step side channel compressor

  • 2,5 - 7,0 kW

HVK vacuum station

vacuum station with claw pump

  • 4 - 9 kW

Integration

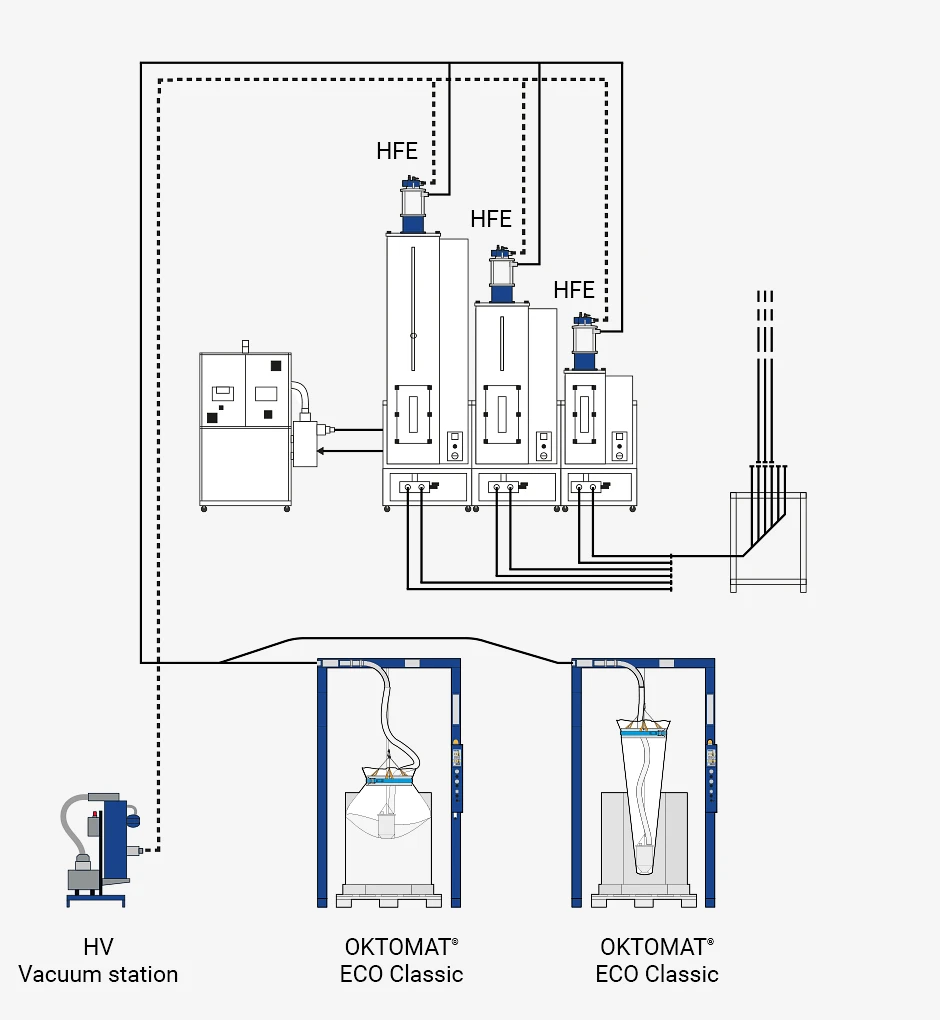

Integration in central granulate dryer

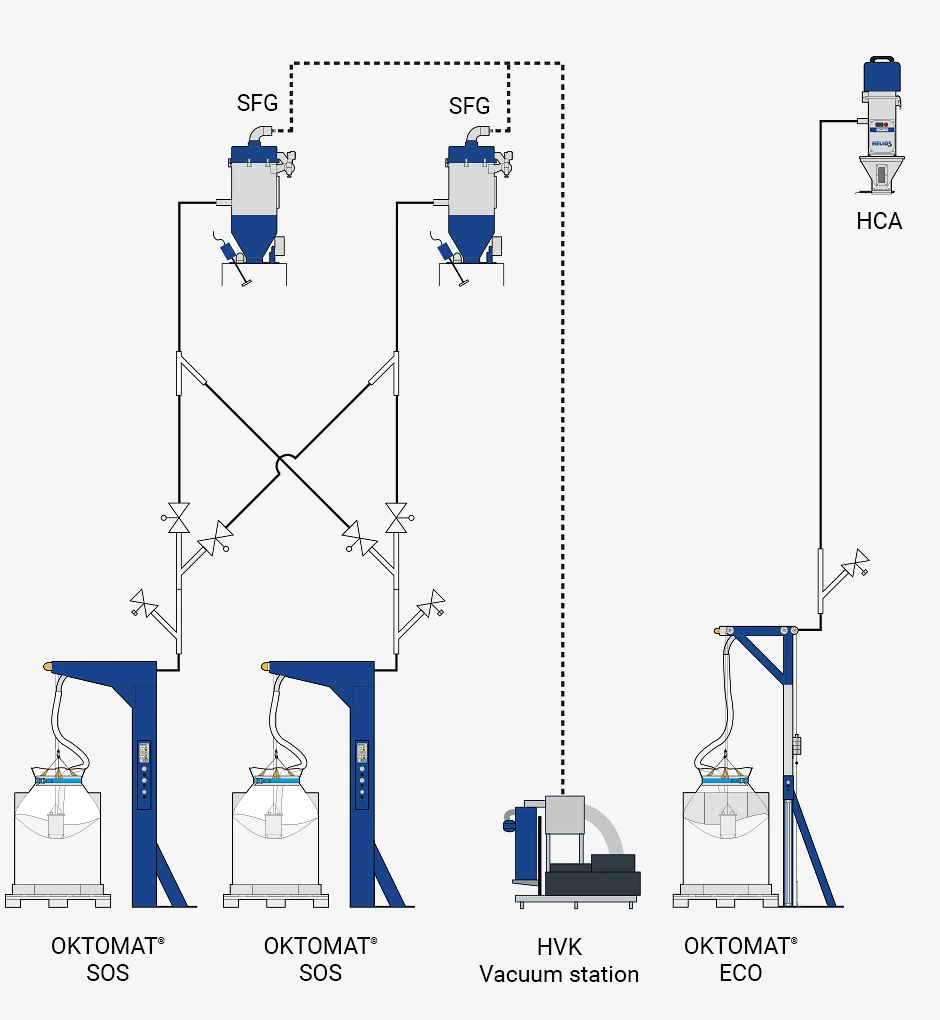

Integration in internal silo filling
